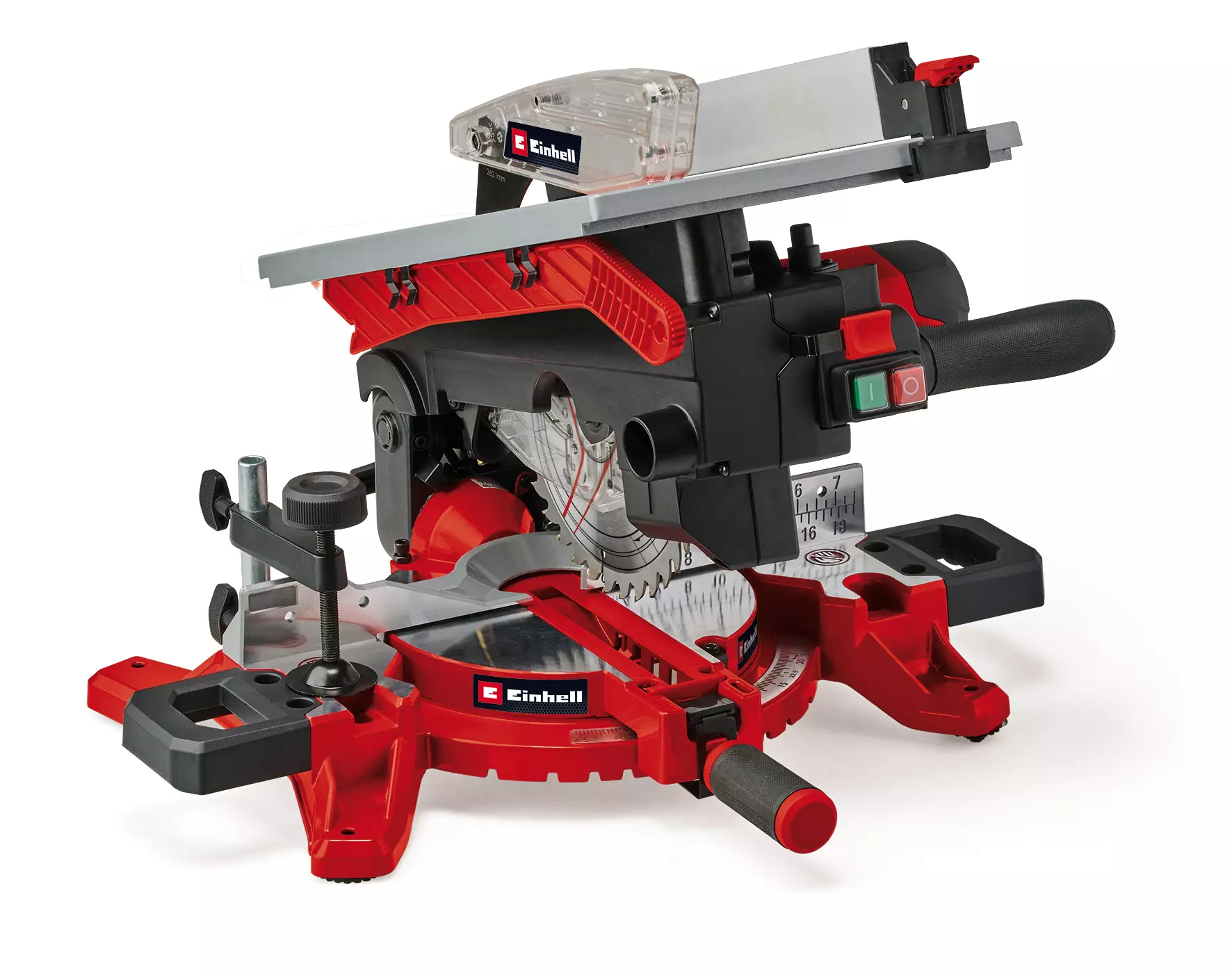

Mitre Saw with upper table

TE-MS 216 T

Item no.: 4300335 EAN: 4006825670707
  • Toolless conversion to table saw or mitre saw
  • Carbide tipped saw blade with Ø 216 mm and 36 teeth
  • Rotary table with angle adjustment up to 45°
  • Saw head as mitre saw can be tilted to the left up to 45°
  • Saw table for use as a table saw
  • Integrated clamping device for securing the workpiece
  • Sliding stick for working close to the saw blade
  • Cutting line laser for precise cuts
  • Parallel guide continuously adjustable
  • Workpiece pads on both sides for longer workpieces
  • Robust aluminium work table
  • Ø 36 mm connections for dust extraction
See more information
Show less information
einhell-expert-mitre-saw-with-upper-table-4300335-productimage-001
Article description

The Einhell cross-cut mitre saw with upper table TE-MS 216 T is a powerful and versatile working tool in the workshop or in the hobby basement. With an output of 1500 watts and an idle speed of 4500 rpm, it works powerfully and precisely through materials such as wood, coated panels or plastics. Clean and precise, the high-quality Ø 216 mm carbide tipped saw blade with its 36 teeth cuts through the workpieces at an angle of up to 45°. The maximum cutting depth at a setting of 90° x 90° (saw table x saw head) is 55 mm and the maximum cutting width is 120 mm. The cross-cut mitre saw can be easily and tool-free converted into a table circular saw and fixed. In this case, the adjustable rip fence ensures straight cuts. The rotary table can be adjusted as desired to the left and right at an angle of up to 45° – an angle scale helps with the optimal position. To achieve perfect mitre cuts, the saw head can be tilted up to 45° to the left. The cut is marked by an integrated cutting line laser. The device has workpiece supports on the left and right, so that even longer workpieces can be easily machined. The clamping device offers additional safety, with which the working materials can be fixed. The integrated Ø 36 mm suction connections, to which, for example, all Einhell wet-dry vacuum cleaners can be connected, ensure clean work.

Technical details

Cutting depth 45° x 45°35 mm
Cutting depth 90° x 90°55 mm
Cutting height40 mm
Cutting width 45° x 45°70 mm
Cutting width 90° x 90°120 mm
Idle speed max.4500 min^-1
Max. swivel range (saw head)0 °
Max. swivel range (saw table)45 °
Min. swivel range (saw head)45 °
Min. swivel range (saw table)45 °
Number of saw blade 1 teeth36 pcs
Product weight11.79 Kg
Saw blade 1 diameter216 mm
Saw blade holder diameter30 mm

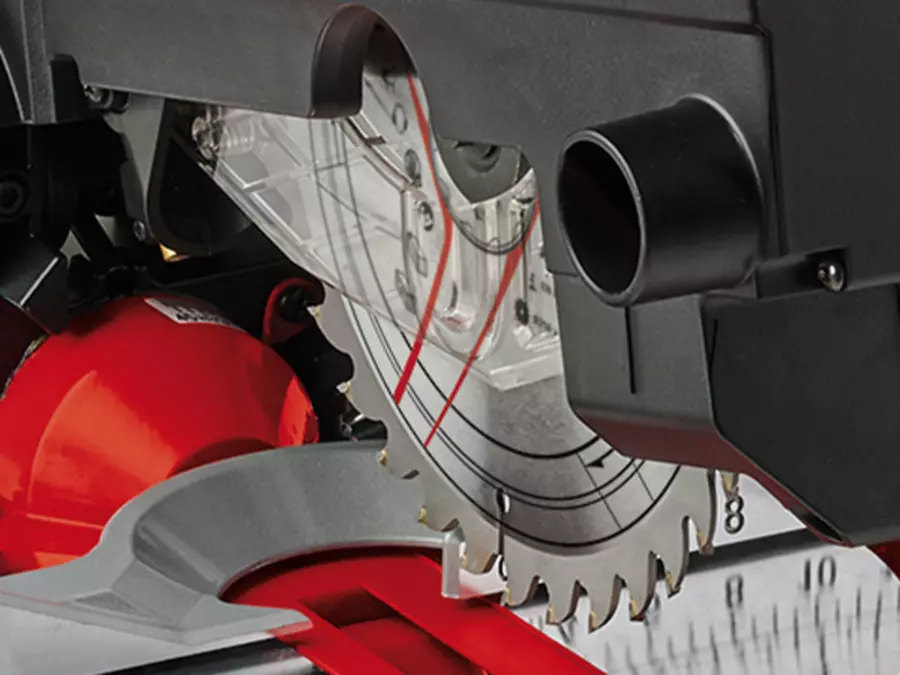

Precise-cuts

Precise cuts

The integrated cutting line laser enables precise sawing.

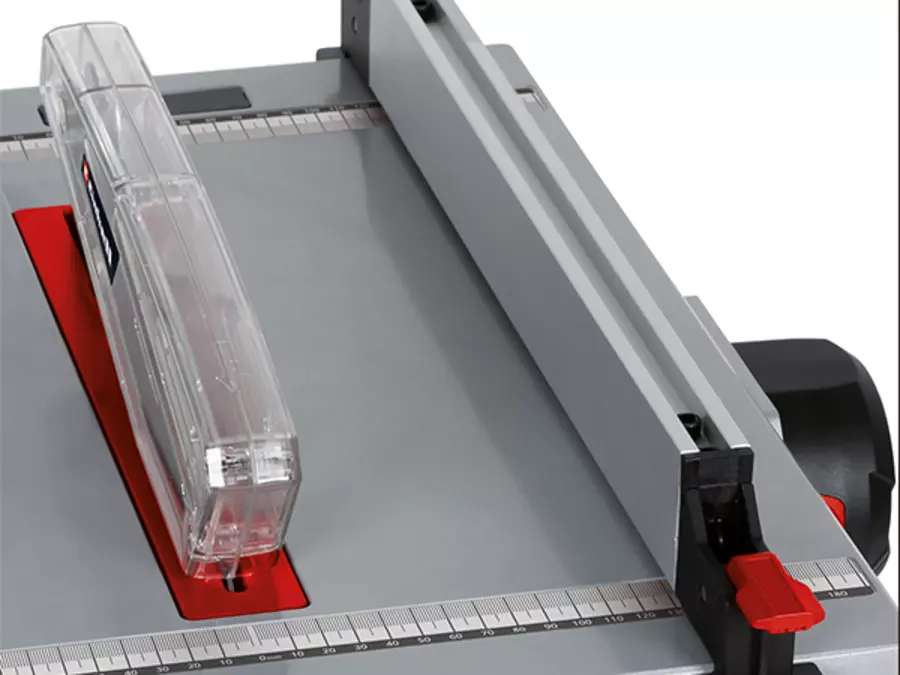

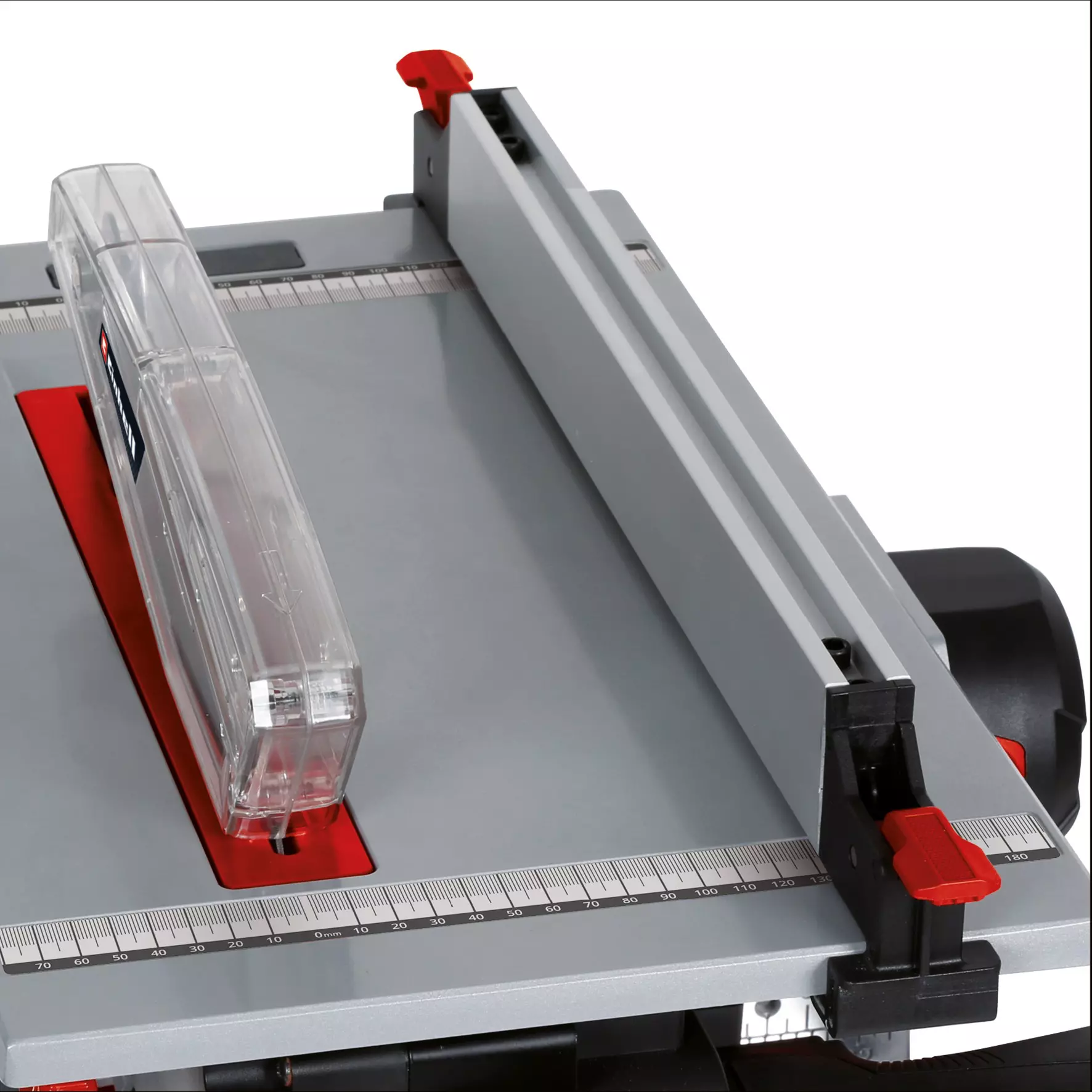

A-straight-line

A straight line

The rip fence on the upper table allows a straight guidance of the workpiece for precise and straight cuts.

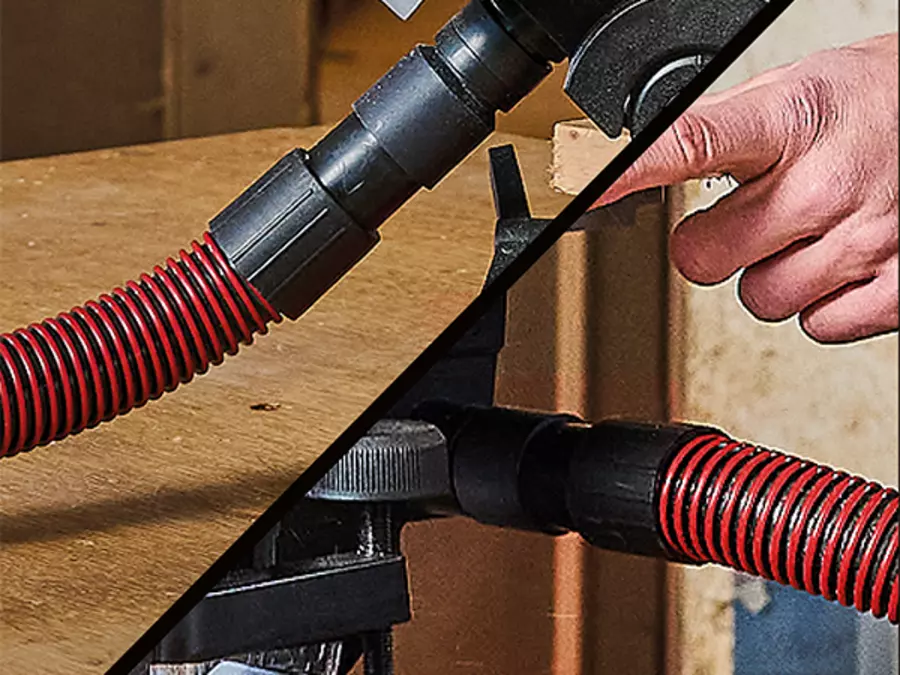

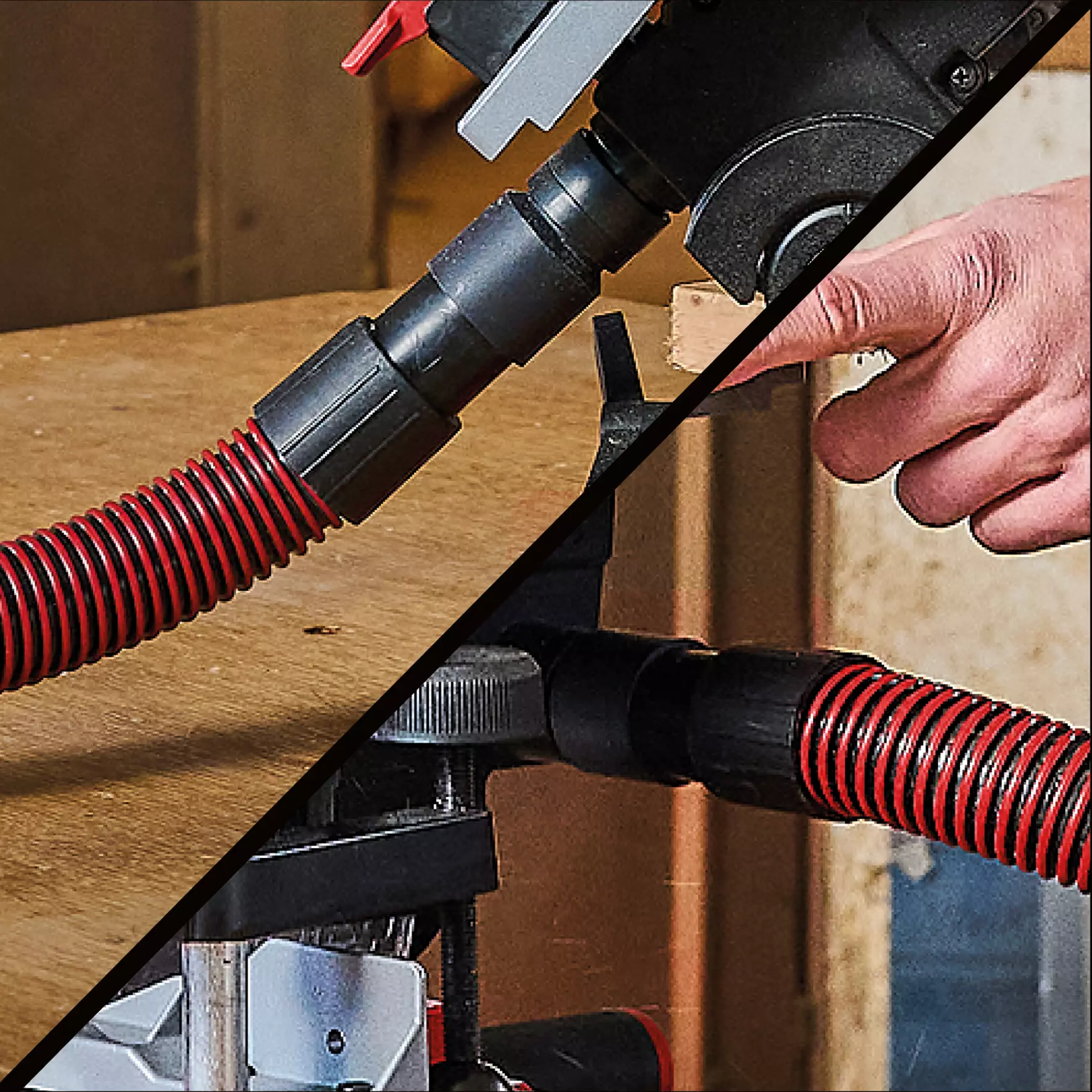

Its-really-neat

It's really neat

A separately available extraction extractor can be connected to the Ø 36 mm suction connections. This keeps the workshop and equipment clean.

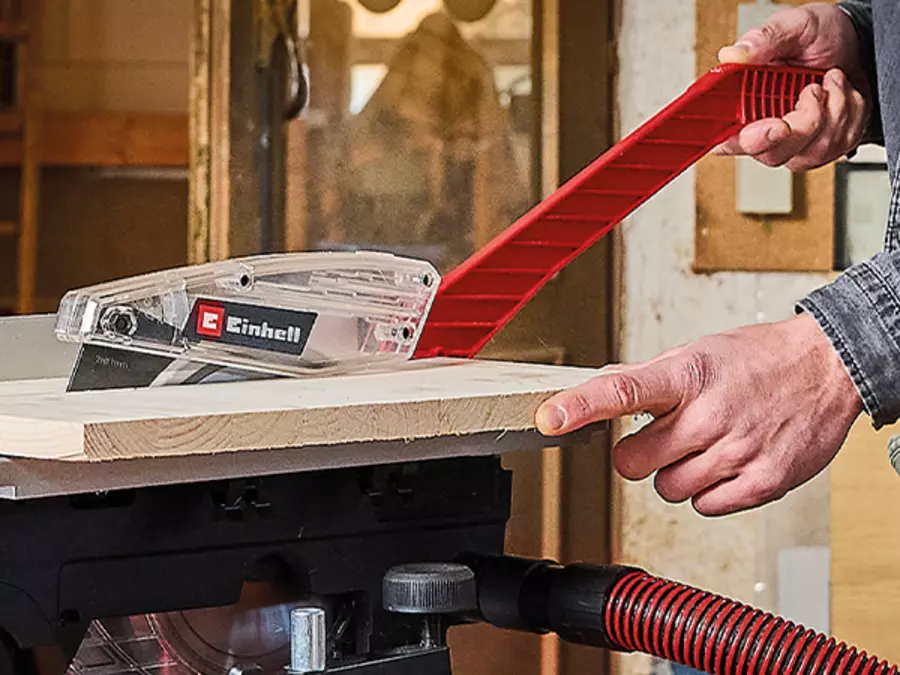

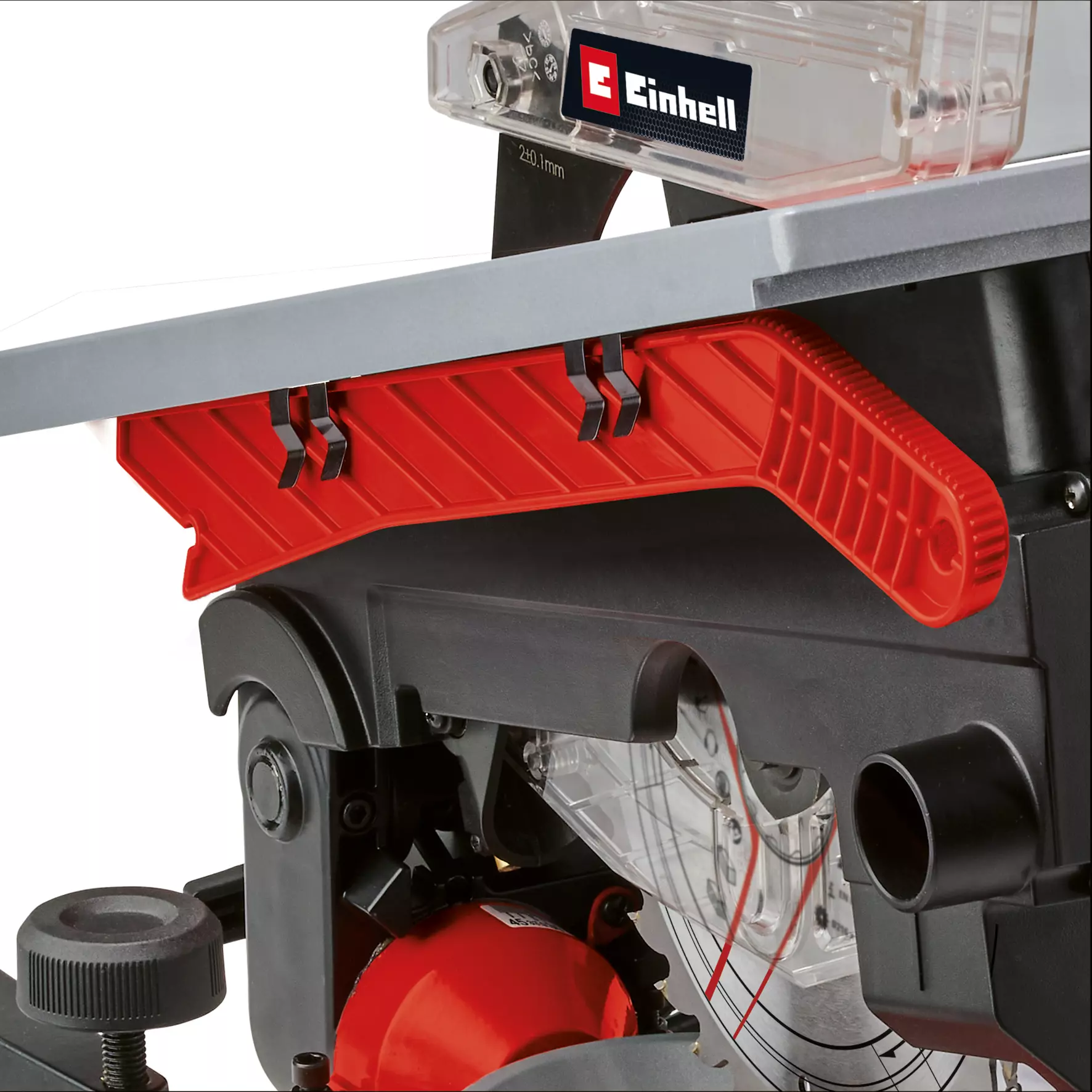

Push-stick

Push stick

Delivery includes a push stick that extends the arm when working close to the saw blade and prevents injuries.

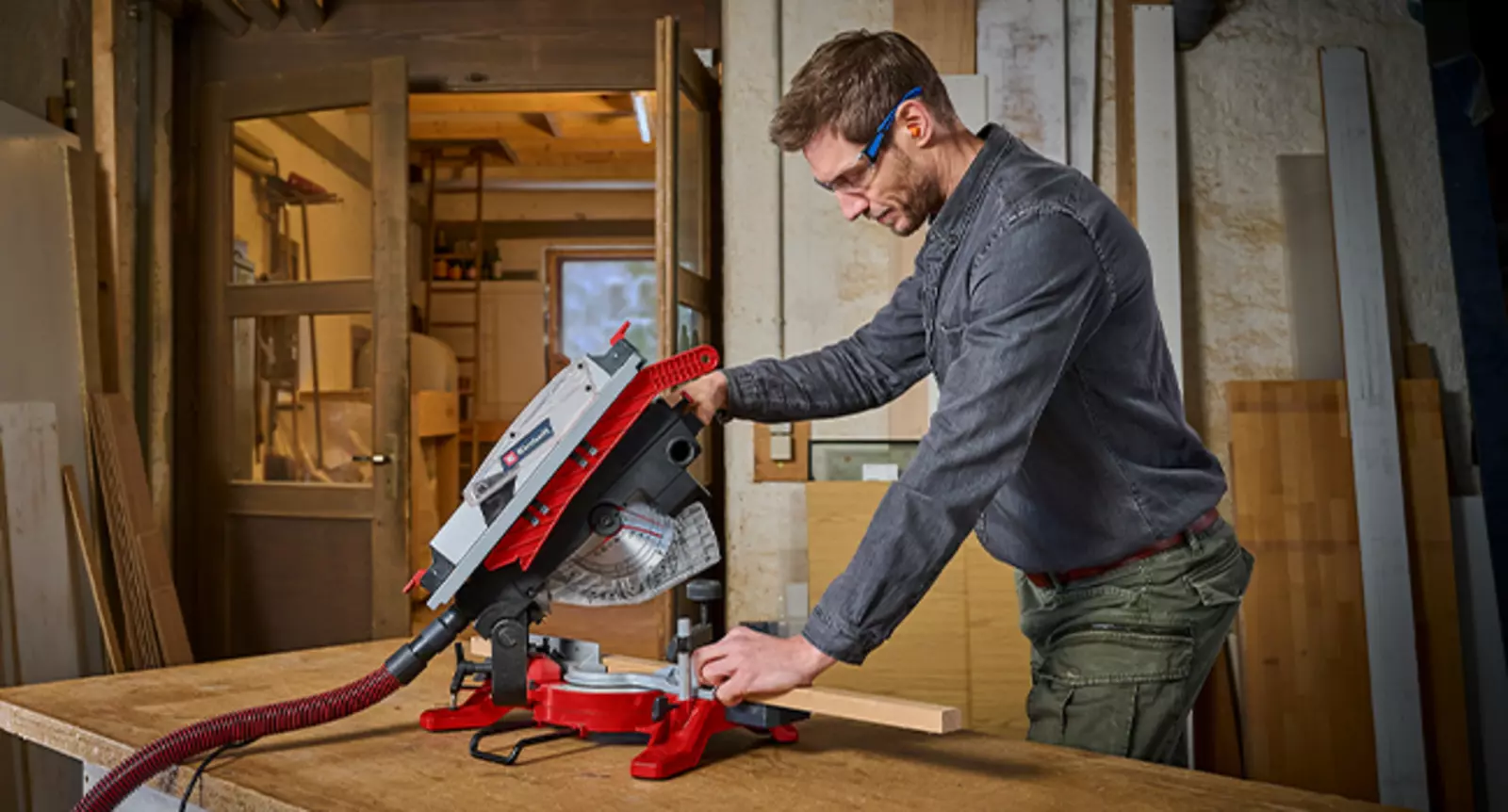

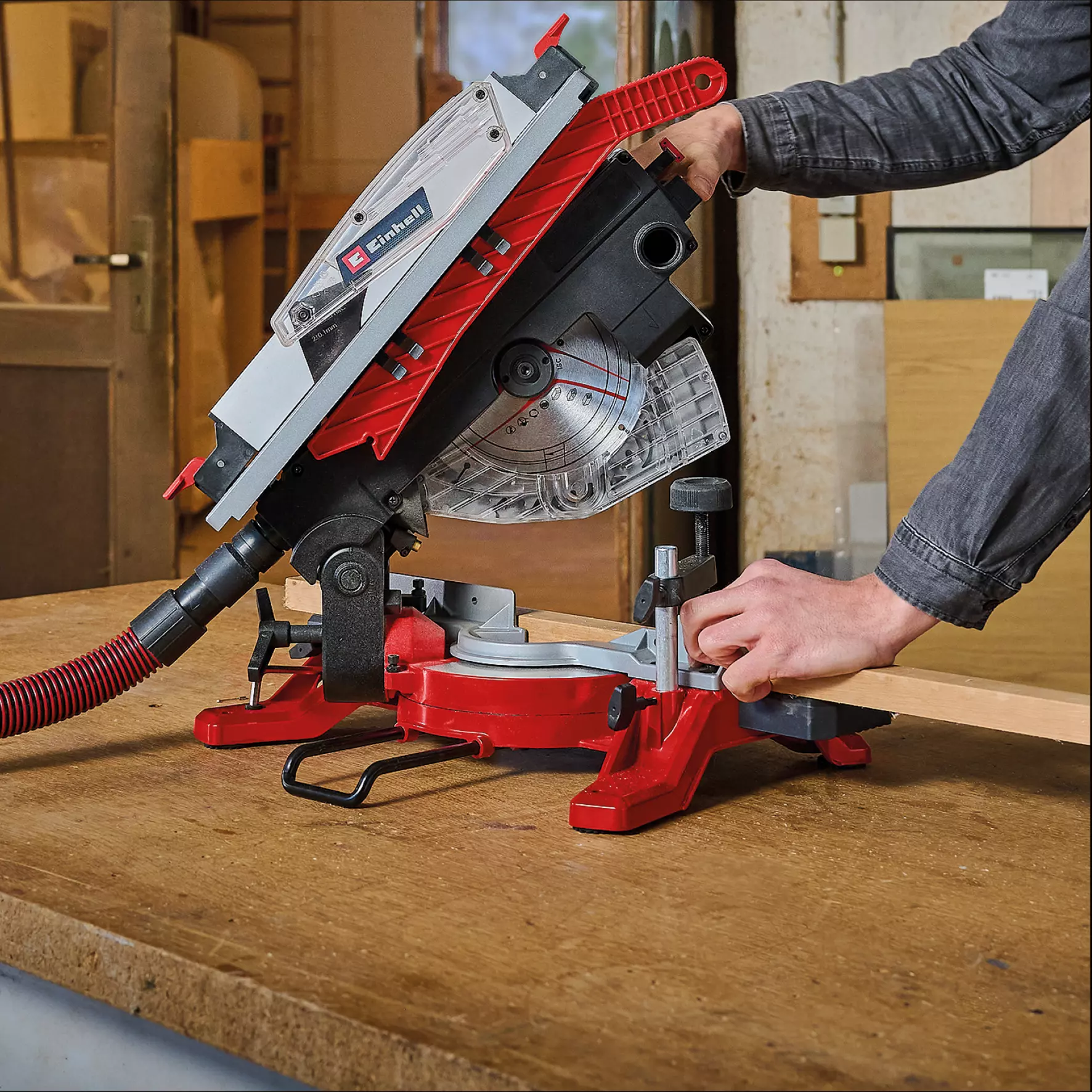

Inlaying--mitre-cuts--sawing

Inlaying – mitre cuts – sawing

The Einhell cross-cut mitre saw impresses with its robust Ø 216 mm carbide tipped saw blade. Thanks to the workpiece supports, the clamping device and the cutting line laser, wood or wood-like materials can be sawn safely and accurately.

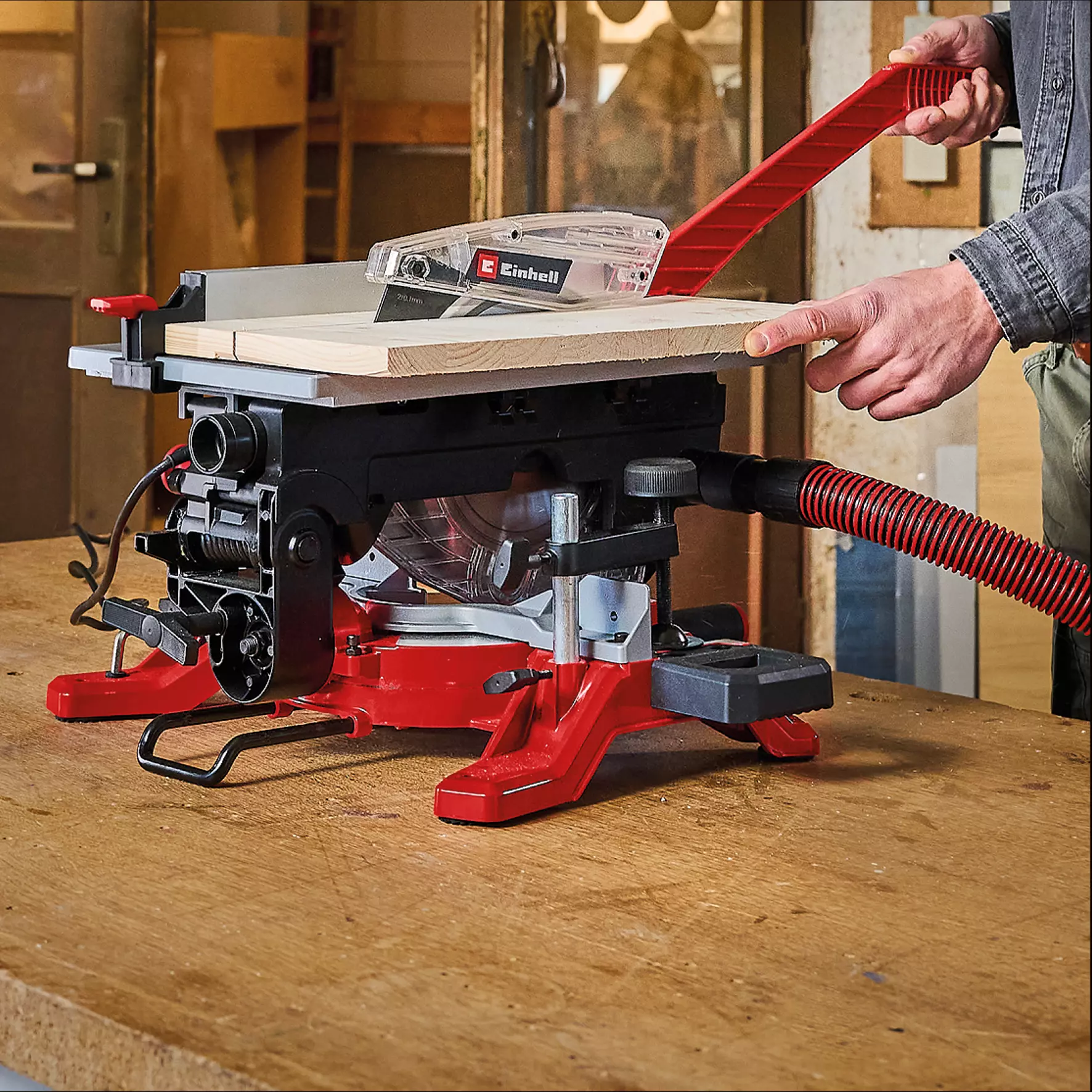

Quick-and-easy-to-use-circular-saw

Quick and easy to use circular saw

The upper table makes it possible – The integrated table makes a tool-free conversion from the cross-cut mitre saw to the table circular saw possible. The corresponding rip fence enables precise cuts.

Snap-in-function

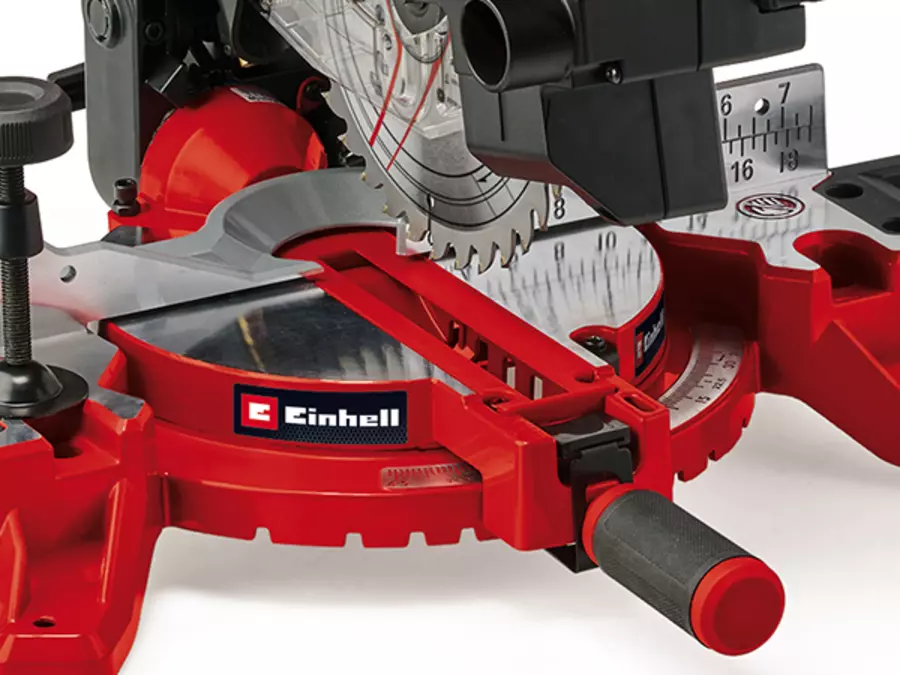

Snap-in function

The saw table can be rotated up to 45° to the left or right and locks in certain positions.

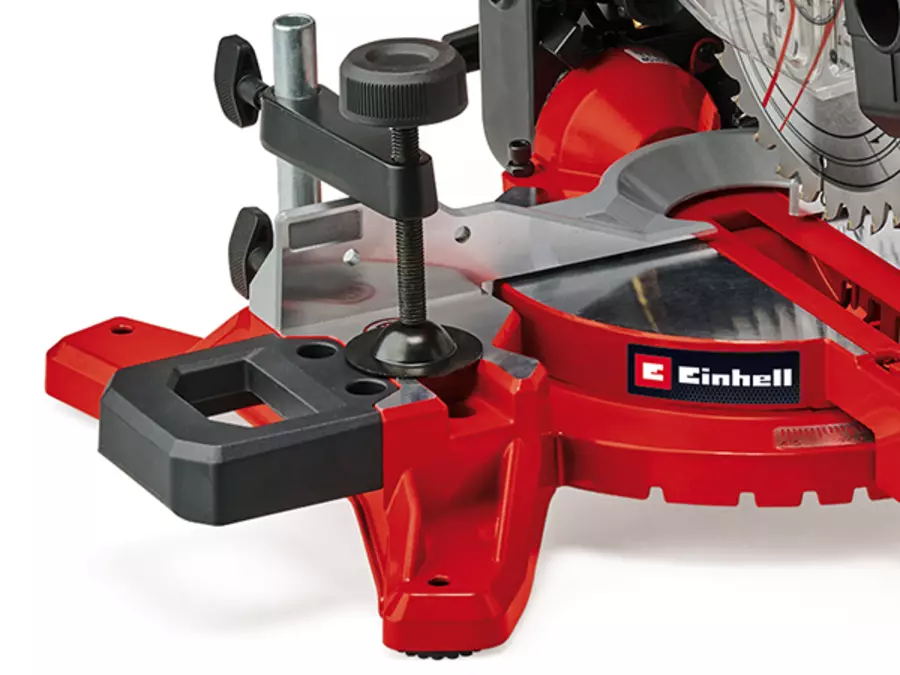

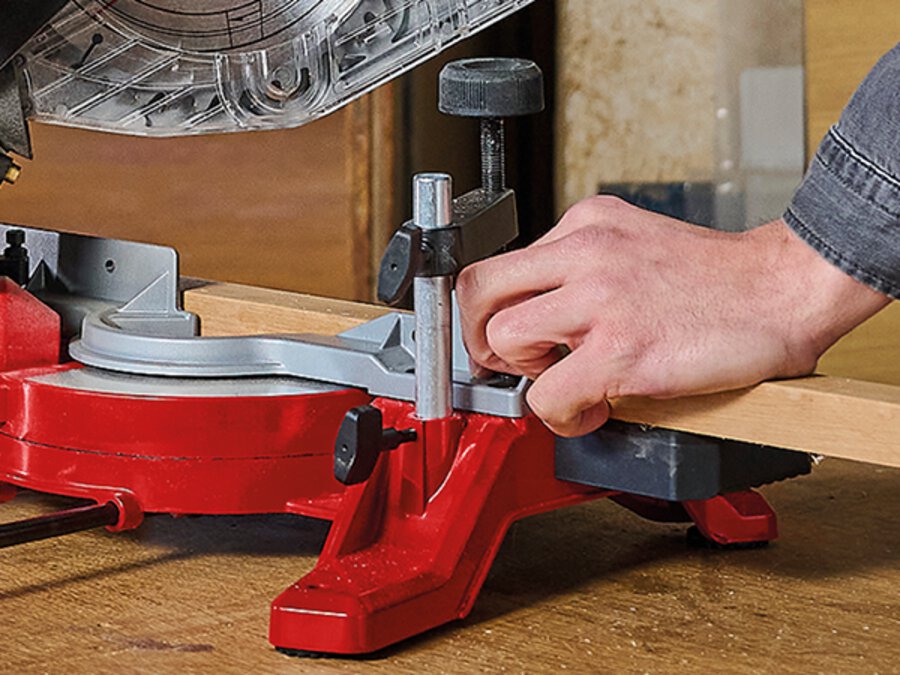

Clamping-device

Clamping device

The clamping device provides additional safety when sawing. Whether wood or wood-like material – everything is securely fixed.

Workpiece-supports

Workpiece supports

Thanks to the workpiece supports located on the left and right, longer workpieces can also be machined.

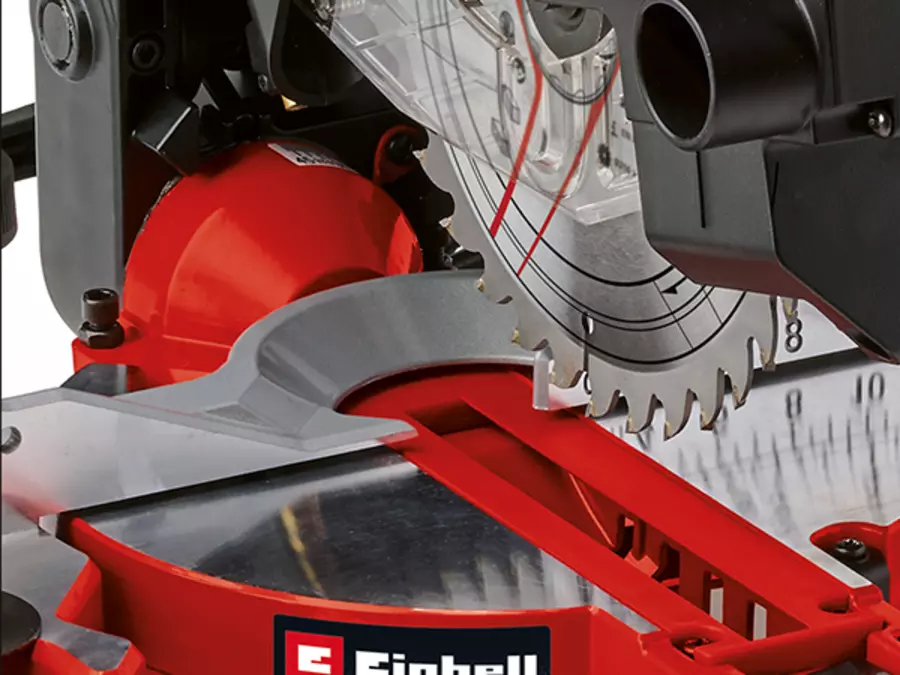

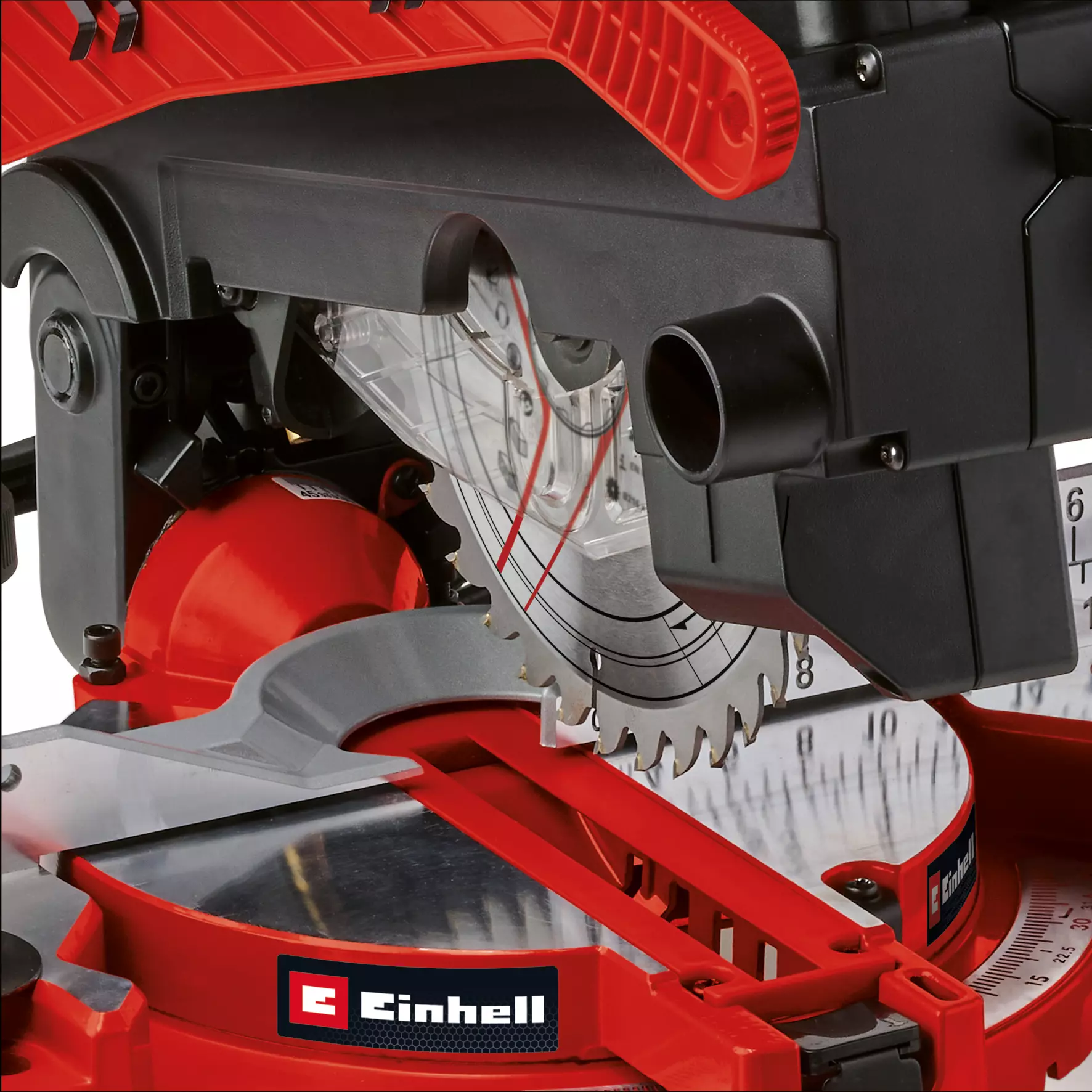

Saw-blade

Saw blade

The high-quality Ø 216 mm carbide tipped saw blade with 36 teeth impresses with its good cutting pattern and long service life.
