Cutting discs
Diamond.Cutt.Disc 180x25,4 tur
Item no.:49797650EAN: 4009317976509
einhell-by-kwb-cutting-discs-49797650-productimage-001
einhell-by-kwb-cutting-discs-49797650-example_usage-001
einhell-by-kwb-cutting-discs-49797650-productimage-001
einhell-by-kwb-cutting-discs-49797650-example_usage-001
Cutting discs

Diamond.Cutt.Disc 180x25,4 tur

Item no.: 49797650 EAN: 4009317976509

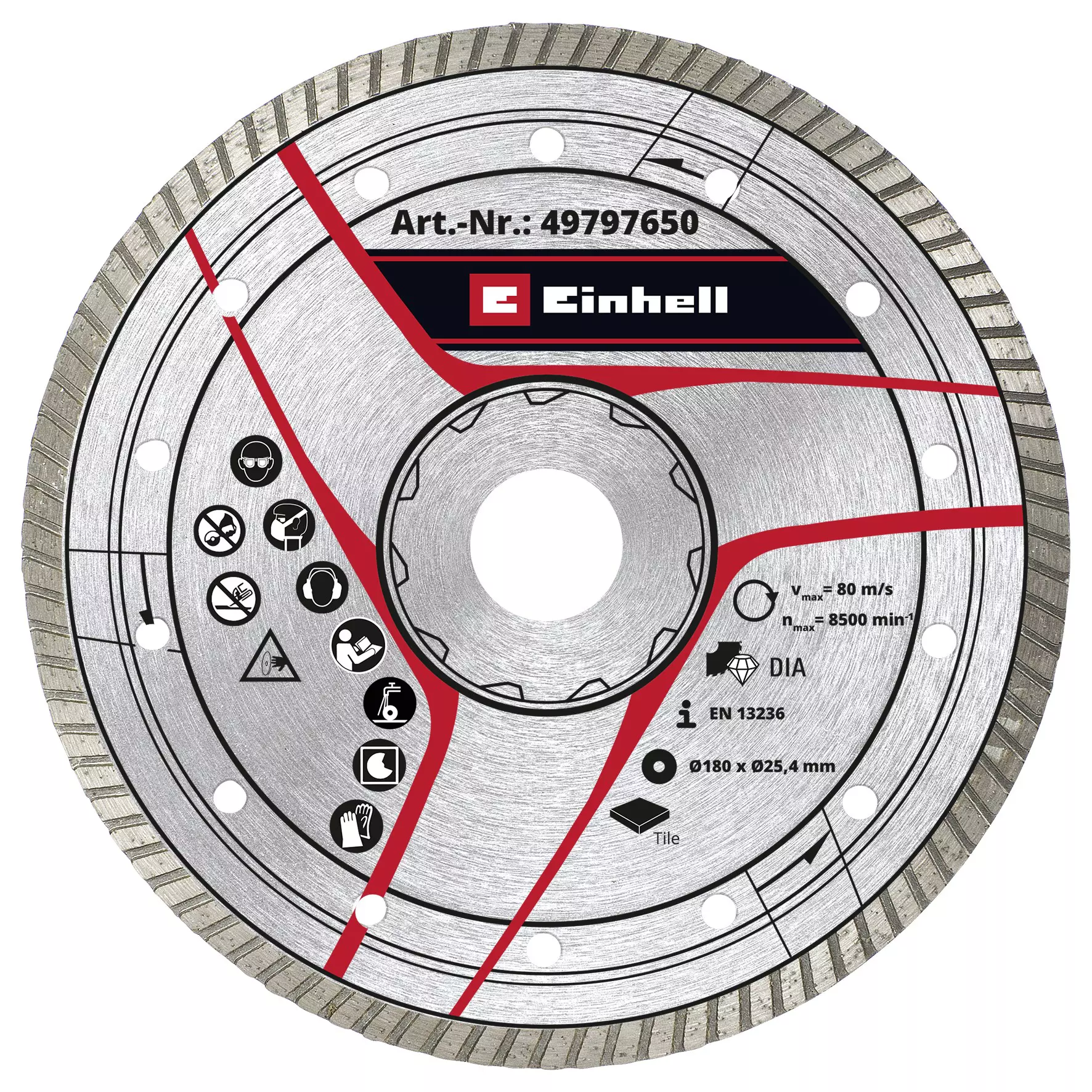

  • Turbo diamond cutting disc for tile cutters

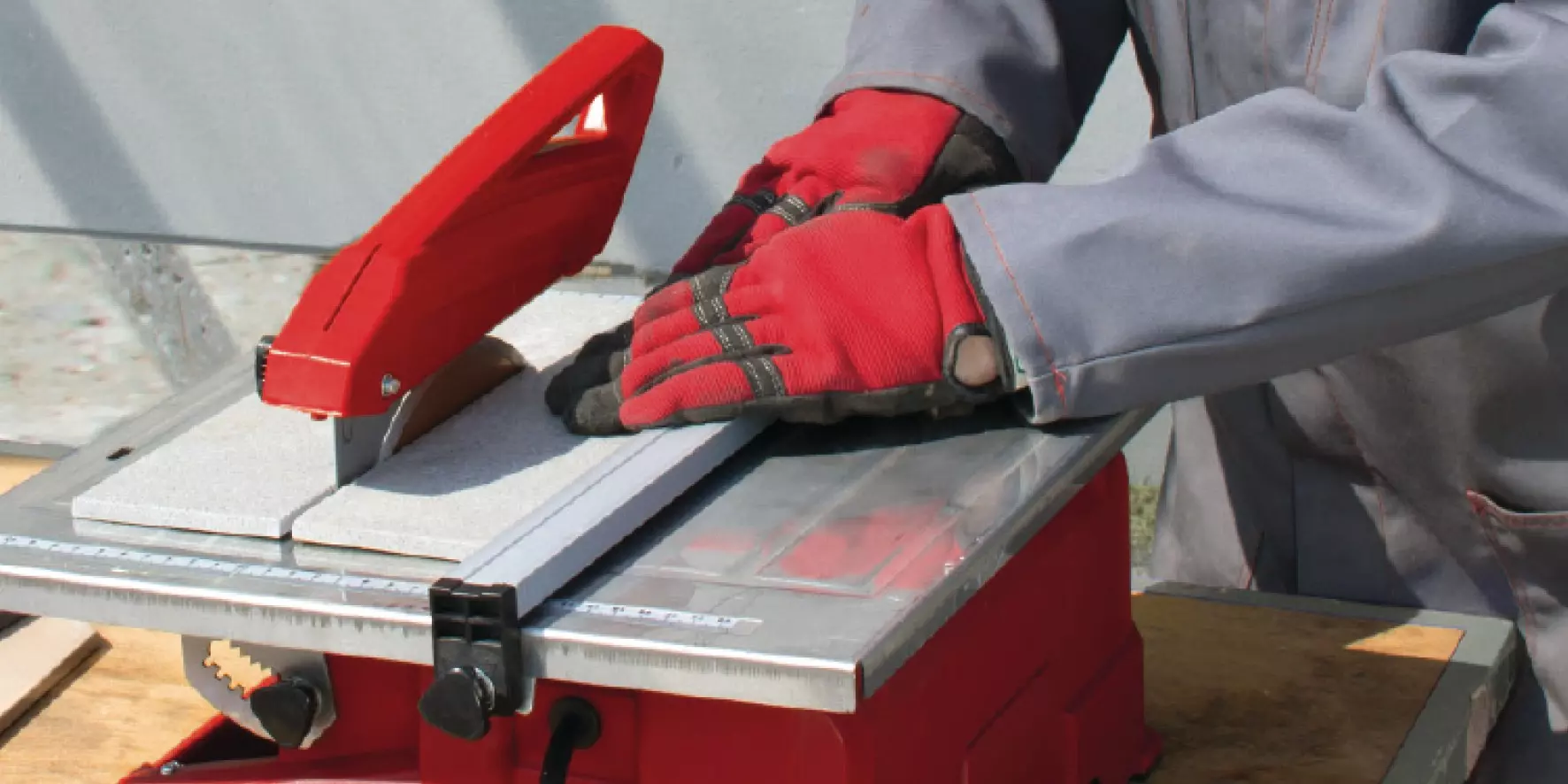

  • Accessory for a wide range of tile cutting machines
  • Suitable for cutting tiles, porcelain stoneware and travertine
  • Diamond scattered surface for fine cut edges
  • Open cutting edge with turbo segments for fast cutting
  • 6 mm large cutting depth
  • 2.6 mm thin cutting disc for precise cuts
  • Dimensions Ø 180 and 25.4 mm bore
  • Maximum revs per minute: 8,500 min^-1
  • Can be used with a circumferential speed of 80 m/s
See more information
Show less information
einhell-by-kwb-cutting-discs-49797650-productimage-001
Article description

The Original Einhell 180 x 25.4 mm turbo diamond cutting disc is a practical tile cutting accessory for high cutting performance in tiles, porcelain stoneware or travertine. It fits a wide range of commercially available tile cutting machines with a circumferential speed of 80 m/s and a maximum rotational speed of 8,500 min^-1. The open cutting edge of the turbo diamond cutting disc has diamond-scattered turbo segments for faster cutting, less material abrasion, better cooling and precise cutting edges. The outer diameter is 180 mm and the bore 25.4 mm. With a minimal disc thickness of 2.6 mm and a large cutting depth of 6.0 mm, the cutting disc ensures precise cutting performance.

See more information
Show less information

Technical details

Cutting surface depth6 mm
Disc diameter180 mm
Disc thickness2.6 mm
Drilling diameter25.4 mm
